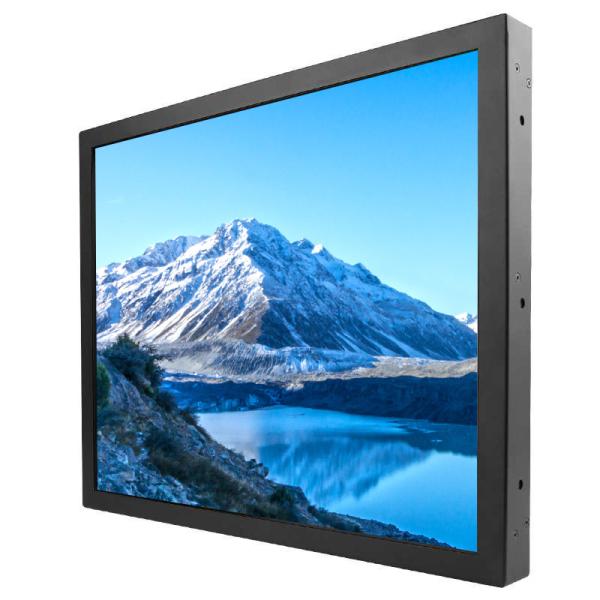

19'' IR Touch Monitor Open Frame Touch Display 1280x1024 Resolution
Description of IR Touch Monitor
This 19 inch IR touch monitor comes with Infrared touch screen,
1-40 points optional, supporting great interactive experience. It
is industrial grade IR touch monitor with IP65 waterproof,
anti-vandal and dust-proof functions. There is a VGA interface and
USB port for use. It supports system: XP Win7, Win8 and Win10. This
IR touch monitor is with professional design, lasting touch,
durable even in harsh environment. Also, OEM and ODM are offered to
meet your individual requirements.
Infrared Touch Monitor Specifications
| Model No. | KOT-0190U-IR3W |
| Series | OT |
| Display Type | 19＂Active Matrix TFT-LCD |
| Display Active Area | 14.8＂(377mm)×11.9＂(301mm) |
| Suggested Resolution | 1280×1024@60Hz |
| Support Colors | 16.7M |
| Brightness(Typ.) | Pure LCD Panel | 250cd/m2 |
| With SAW Glass | 225cd/m2 |
| Response Time(Typ.) | 16ms |
| Viewing Angle | Horizontal(left/right):(85°/85°) |
| (Typ.at CR＞10)) |
| Vertical(up/down):(80°/80°) |
| Contrast Ratio(Typ.) | 1000:1 |
| Video Input | Analog RGB |
| Frequency(H/V) | 30～80KHz / 60～75Hz |
| Power Supply | Type: External brick |
| Input (line) voltage: 100-240 VAC, 50-60 Hz |
| Environment | Operation Temp: | 0～50°C |
| Storage Temp: | -20～60°C |
| MTBF | 50,000 Hours |
| LED Back light Life(Typ.) | 50,000 Hours |
| Weight(N.W/G.W) | N.W :5.85Kg (Single) |
| Power Consumption | 15W Max. |
| Standby power consumption | 0.95W |
| Mount Interface | 1)VESA 75mm and 100mm |
| 2)Mount bracket, horizontal or vertical(Standard mount brackets are
supplied) |
| OSD Control | Buttons | AUTO,+,POWER,-,MENU |
| Function | Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V
Location, Languages, Function, Reset |
| Touch screen Type | Keetouch 19" IR Touch Mointor |
| Support System | WinXP,Win7,Win8,Linux |
| Touch System Interface | Having USB interface |
| Touch Response time | 16ms |
| Agency Approval | CCC,UL,FCC,CE,CB,RoHS |
| Regular Warranty | 1 year |
Infrared Touch Monitor Mechanical Dimensions
Applications
IR Touch Monitors are widely used in industries such as retail,
gaming, kiosk, self-service, finance, transit, conference,
education, healthcare, public service, e-commerce, hotels,
restaurants, travel service, payment systems, museums, exhibitions,
smart home, subways, railway stations, control and operation
systems, airports, entertainments, etc.
Advantages of IR Touch Monitor
1. High durability: IR touch monitors are designed to withstand
heavy usage and can handle millions of touch inputs. They are
resistant to scratches, dust, and water, making them ideal for use
in high-traffic areas.
2. Easy calibration: IR touch monitors can be easily calibrated to
ensure accurate touch input detection. This makes them more
user-friendly and reduces the need for maintenance.
3. Compatibility: IR touch monitors are compatible with a wide
range of operating systems, including Windows, Mac, and Linux. This
makes them versatile and suitable for a variety of applications,
including gaming, education, and business.
Why choose us?
1. We are a leading provider of industrial grade touch products and
touch solutions for over 17 years.
2. Our core competence is differentiated product customization.
With over 40 professional R&D engineers, we can offer OEM and
ODM services to meet customer’s individual requirements.
3. Our company has been approved by ISO9001 and ISO14001, and with
the certifications CCC, UL, FCC, CE, CB, BIS, RoHS, etc. for the
products.
4. Professional after-sales team at any time to provide services to
customers.
FAQ:
1. Can you produce the IR Touch Monitor according to the customer's
requirements?
Sure, with 40+ Professional R & D engineers, OEM and ODM are
welcomed.
2. What is your payment method?
We can accept T/T, Western Union, Paypal, Pay Later, Credit card,
Boleto, e-Checking and Alipay. ( L/C can be negotiable. )
3. What is your delivery time for the IR Touch Monitor ?
3-5 work days for inventory orders, 7-15 business days for bulk
production.
